Warping Machine

Product Overview

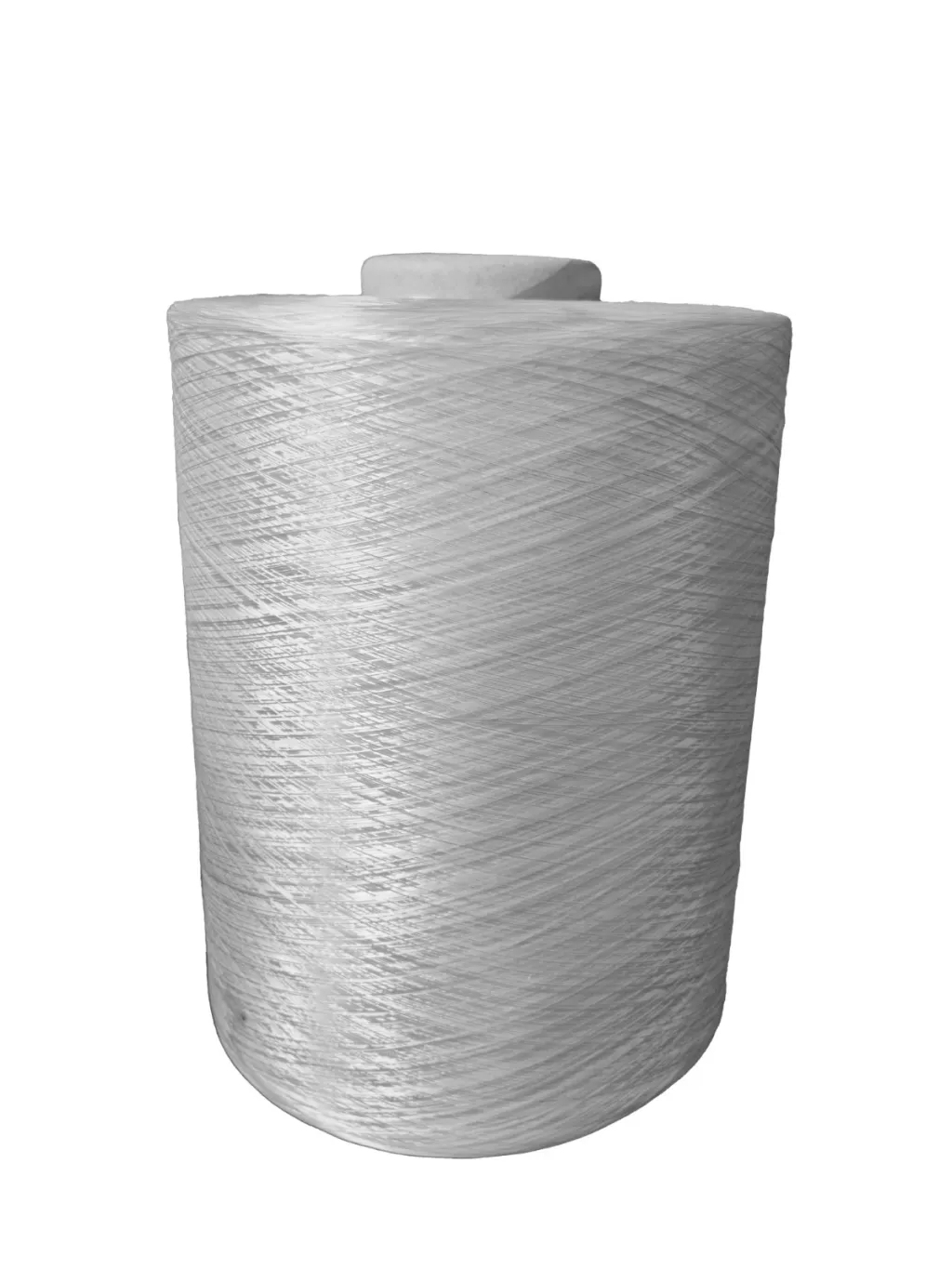

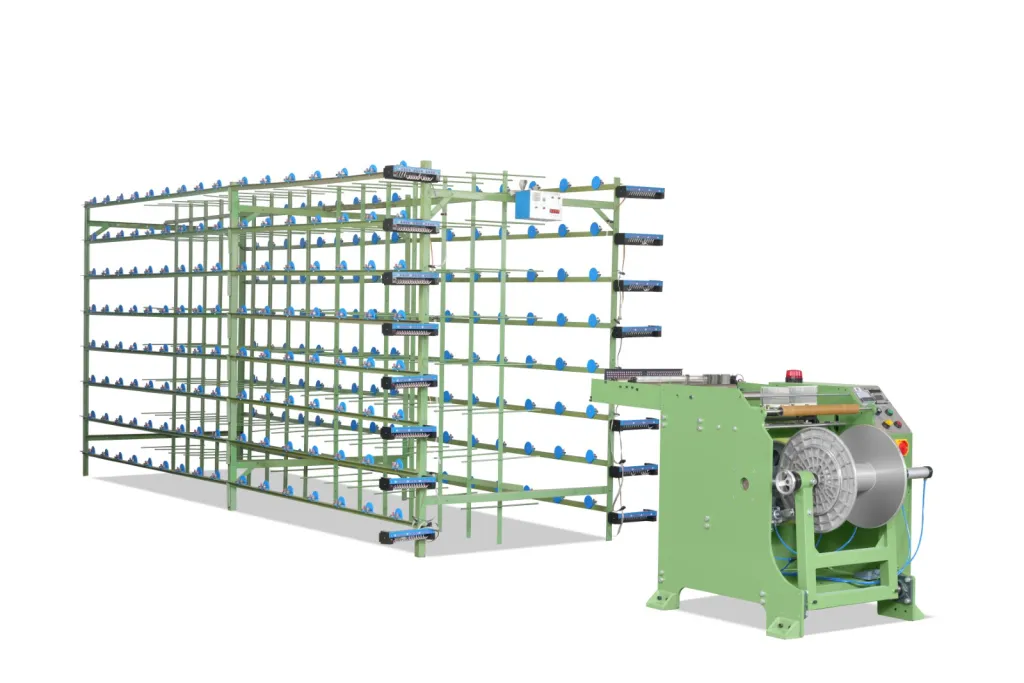

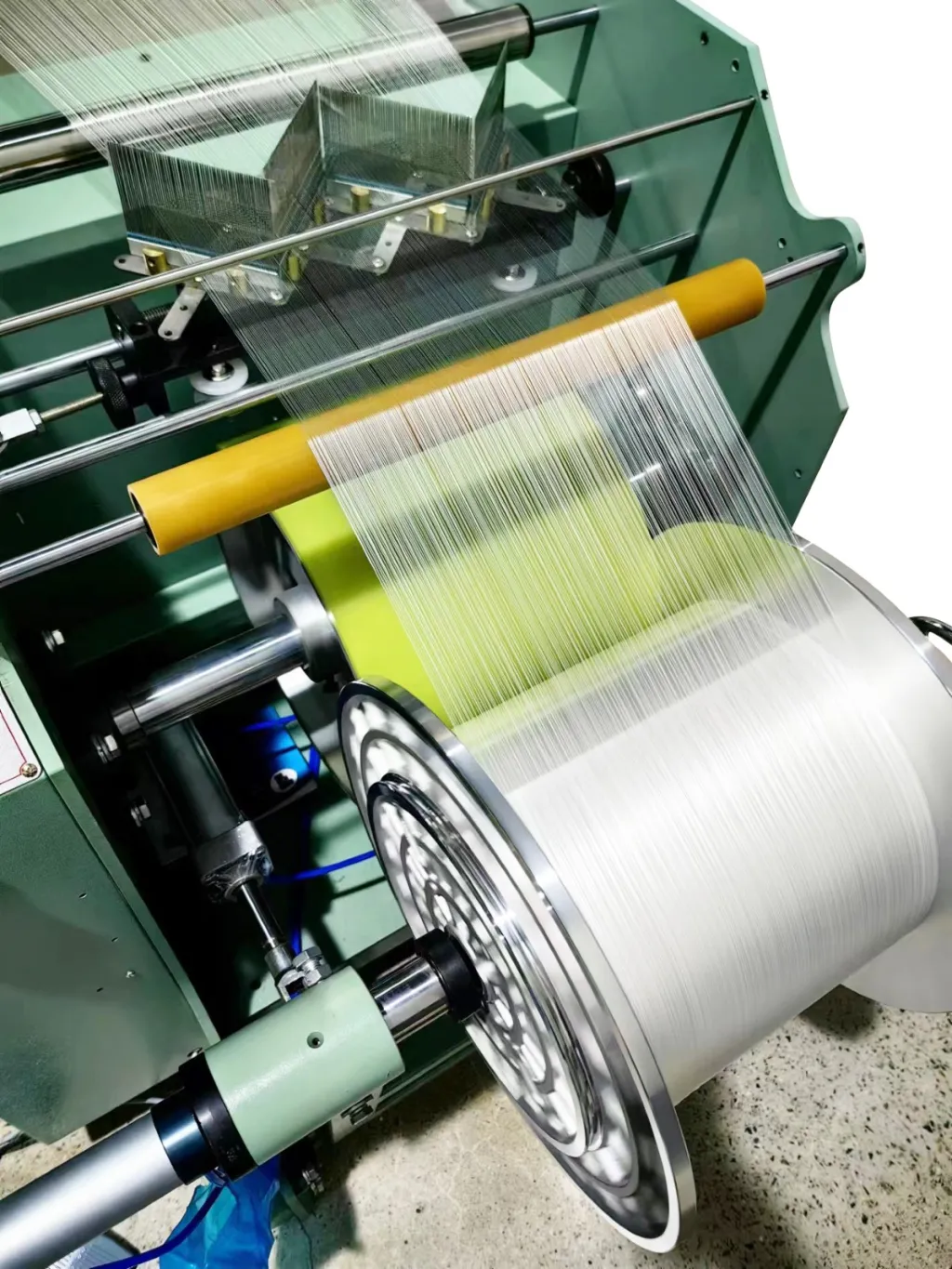

The warping machine is used to wind various yarns eg . cotton yarn , synthetic filament yarn , twisted yarn and textured yarn onto a beam in uniform tension for narrow fabric weaving , especially for pile weather strip weaving . This machine has the following attachment and advantages .

Product Details

Warping Machine
Warping Machine
Warping Machine
Warping Machine
Warping Machine
Machine weight
400kg
Power
380V /3phase
Power
1.5kw
Motor speed
1430r/ min
Power
50Hz
Machine size
1450mm*1000mm*900mm
Machine covering area
7500mm*1500mm*2000mm

The warping machine is used to wind various yarns eg . cotton yarn , synthetic filament yarn , twisted yarn and textured yarn onto a beam in uniform tension for narrow fabric weaving , especially for pile weather strip weaving . This machine has the following attachment and advantages .

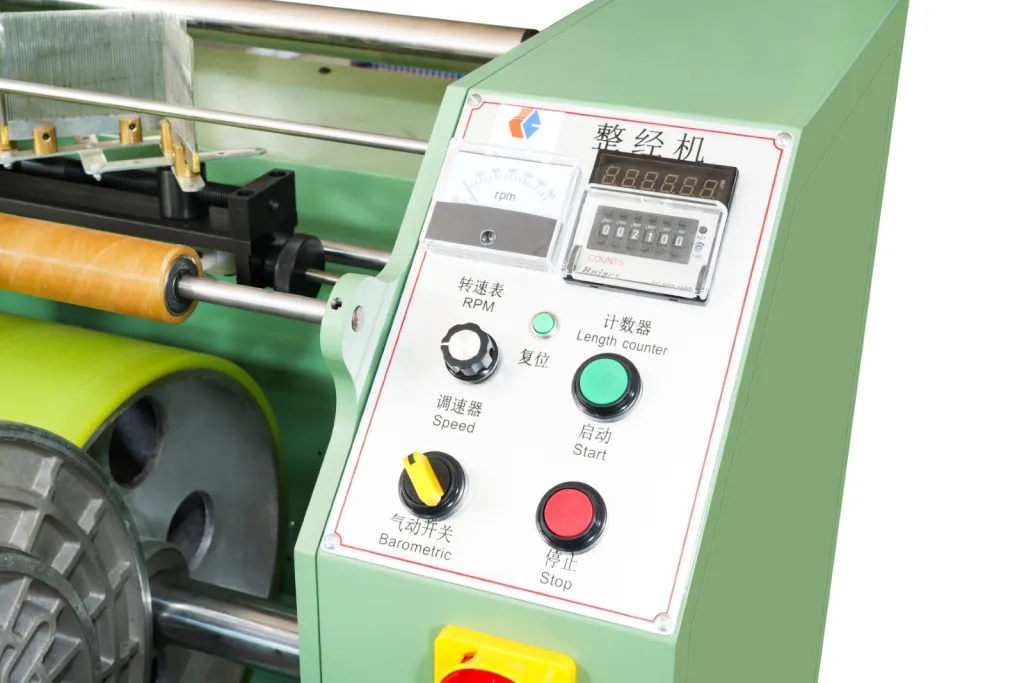

● The speed control by inverter makes the machine run in constant and smooth speed .

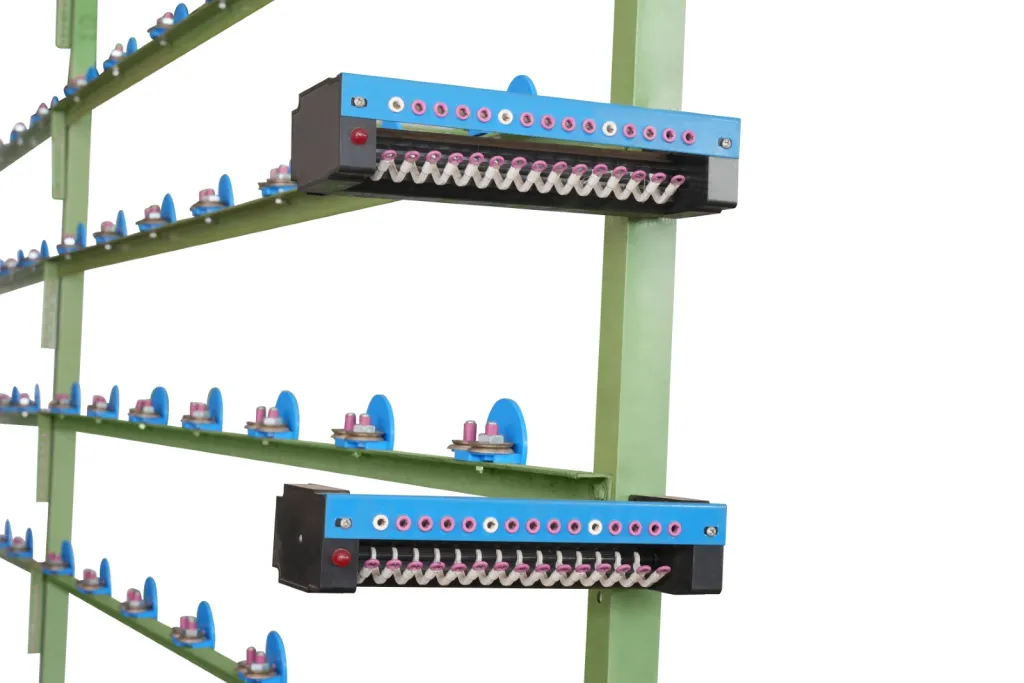

● The warp tensioners ensure the optimum tension for yarns

● The reed can be easily adjusted according to the yarn ' s density .

● The warping machine has the automatic yarn - break stop device with a warping light , easy to operate .Automatic meter counting.
