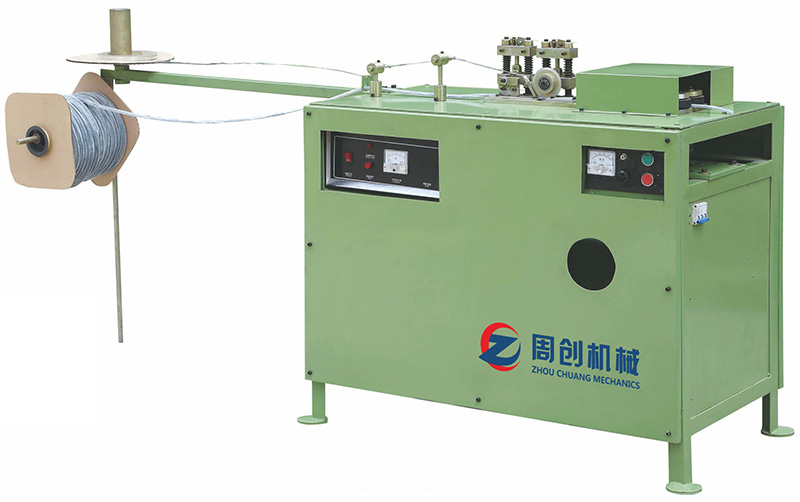

Fin Sealing Machine

Product Overview

The sealing machine is to make fins into the pile weather strips in order to strengthen the water - proof , dust - proof and wind - proof performance.The sealing machine is equipped with the ultrasonic generator , which transmits the power to seal the PP film into the pile weather strips.The non - woven fabric also can be sealed into the pile weather strips , helps to increase the pile density , reduce noise , reducing the friction and achieve better sealing effect.

Product Details

Fin Sealing Machine
Fin Sealing Machine
Fin Sealing Machine
Fin Sealing Machine
Model
Fin Sealing Machine
Dimension
1000mm*570mm*1000mm
Wave box motor power
0.4kw
Motor speed
1680/1350r/min
Weight
190kg
Motor voltage
380v/220V
Frequency
50Hz
Production rate
18m/min Speed regulation with frequency conversion
Dynamic form
Power-driven
Output frequency
20kHz
Frequency band
20kHz
Input voltage
220V
Driving form
Self-excited action
Welding principle
High frequency vibration
Action object
PP (polyvinyl propylene) current 1.5A-2.5A

The sealing machine is to make fins into the pile weather strips in order to strengthen the water - proof , dust - proof and wind - proof performance.The sealing machine is equipped with the ultrasonic generator , which transmits the power to seal the PP film into the pile weather strips.The non - woven fabric also can be sealed into the pile weather strips , helps to increase the pile density , reduce noise , reducing the friction and achieve better sealing effect.

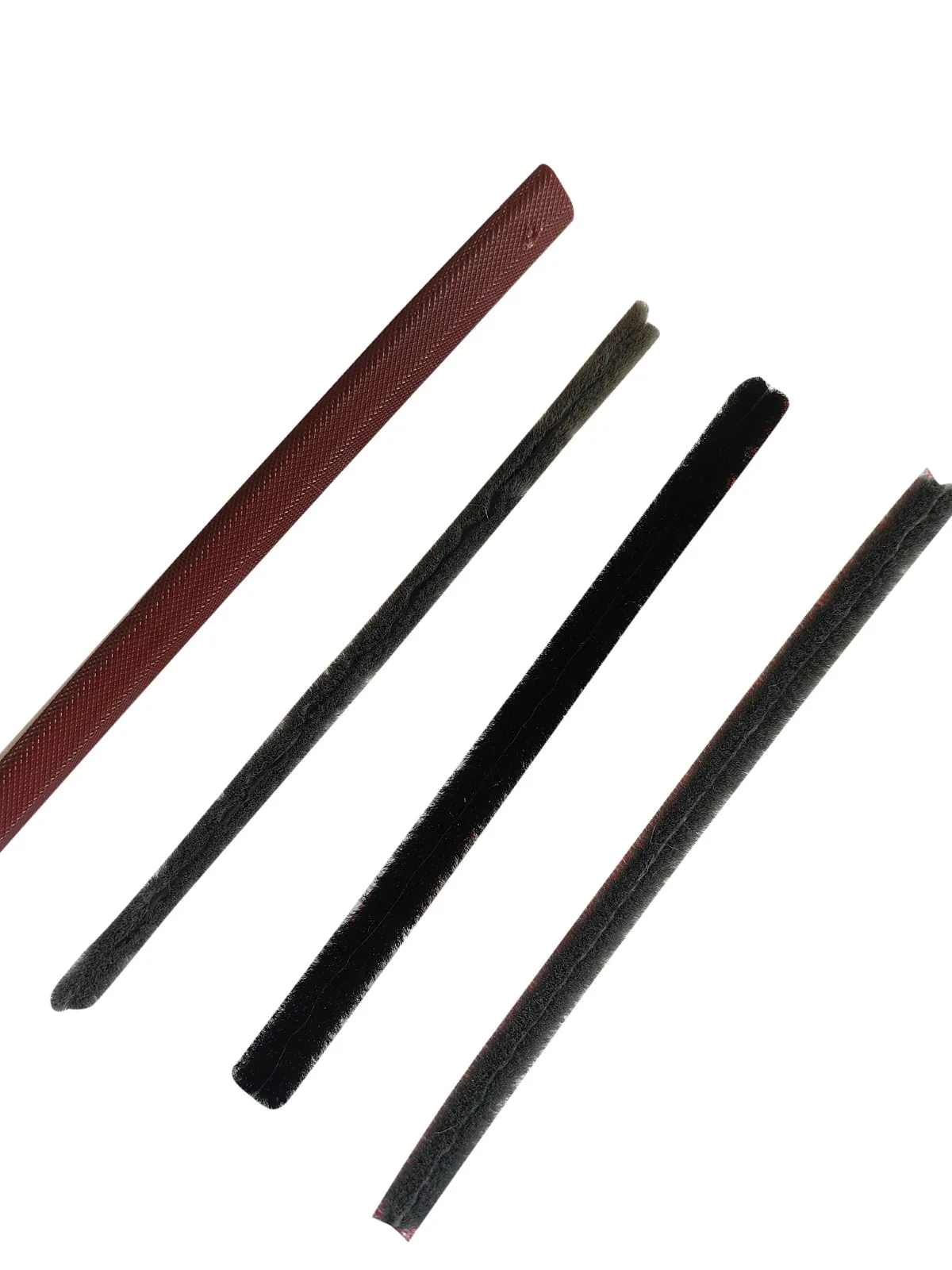

Fin material : polypropylene film , non - woven fabric
